Hooking Directx11 to Display ImGUI in Hello Kitty

Authors

Disclaimer: This post is for educational purposes only. The techniques described here including DirectX hooking and ImGui overlay rendering were used solely for learning about memory, DLL injection, and graphics programming. I do not condone or support using these methods to cheat, gain unfair advantages, or modify commercial games in ways that violate their terms of service. I’m just a student who loves learning about the internals of games, memory, and graphics APIs.

So recently I have really been enjoying Hello Kitty Island Adventure. It's been a little guilty pleasure...


However, while I was sitting down one night all cozy in a huge sweater, some juice, and my controller, it dawned on me. Wouldn't it be so fun to mess with this game?

So I started scheming, plotting even. I wanted to do a few things to this game and tear it apart, not for anything malicious of course, just because I love breaking things open, messing with them, seeing how they work. I personally find it fascinating.

So I wanted to do a few things

  1. get a custom overlay working on this game
  2. modify my save file
  3. hook functions of this game and do some fun stuff...

However, I quickly found out that not only was this game secured by Denuvo, but it also had its save files encrypted. So we will shelf our second two plans for now...

Let's just get a harmless UI working in the game. How would you even pull that off?

hmmmmm...

well, turns out it's really simple 😎 and it feels really fucking sick doing it. did you know that you can hook any function in a given program by knowing its given memory offset?

memory offsets aren't static... but we will get back to that hehe, side note if you don't know what a memory offset is you should check this out

or let's take it a step back. you can hook a DLL in a certain program, in our case DirectX11, and tell it to do things? well I hear you ask zoe, how would does that even work and how would you even pull that off? let me show you hehe

so we know that DLLs are executables that have certain functionalities that programs like hello kitty use for certain things. in this case DirectX11 is a rendering API that lets our game render things to the scene! so it's what's responsible for making sure I get to see my favorite characters in 3D on my screen. it talks to the GPU and says hey buddy load this shit for me.

or ehem... cough if you wanna sound like you know what you're talking about "DLLs are Dynamic-Link Libraries which contain compiled functions and data that other programs can call at runtime they aren't standalone programs you can’t “run” a DLL directly it’s loaded by another executable at runtime.

but it's more fun to not overcomplicate things. as long as we both know we know what we're talking about, why be boring

so how would we call those functions if we're not the program ourselves? well, what if we were? that's where injecting our own DLL into the process comes in, which is actually simpler to do than you might think. in my case I used a program called Process Hacker there are other ways, but this is probably the simplest for now

so let's create a DLL to inject! how hard could it be? I mean I do know how to make a DLL aaaanndd I know how ImGui works from class this anddddd andddd DirectX is kinda like Vulkan right? I know Vulkan!

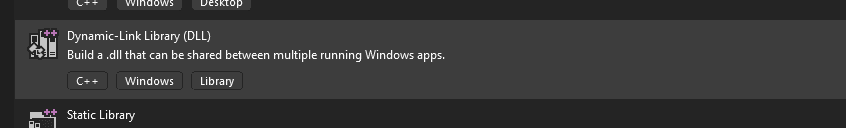

so I started by making a Dynamic Link Library project in Visual Studio


in our main we should have something along the lines of:

BOOL WINAPI DllMain(HINSTANCE dllInstance, DWORD notifyReason, LPVOID reasonData) { ... }

this is our main function, our entry point. let's populate it to tell it to create a new thread with a function called render

static HMODULE currentModuleHandle;
HANDLE uiThread = nullptr;

BOOL WINAPI DllMain(HINSTANCE dllInstance, DWORD notifyReason, LPVOID reasonData) {

 // if we attached to a process do this:
 if (notifyReason == DLL_PROCESS_ATTACH)
 {
   DisableThreadLibraryCalls(dllInstance);
   currentModuleHandle = dllInstance;
	 //                       start a new thread routine of our Render func
   uiThread = CreateThread(nullptr, NULL, (LPTHREAD_START_ROUTINE)Render, nullptr, NULL, nullptr);
 }

// if we detach lets do this
 if (notifyReason == DLL_PROCESS_DETACH)
   TerminateThread(uiThread, 0);

 return TRUE;
}

but wait, how, what do I call, what do I do in render? I know I need the window handle... hmmm so I looked it up, turns out someone's done this before

https://github.com/adamhlt/D3D11-Overlay-ImGui/

well would you look at that, I can reference their code to point me in the right direction!

the render function will handle all of the rendering required, so it is a bit long. I will briefly cover it; however, this isn't a tutorial. if you want a full example, I would recommend checking out the repo above not only just using it but trying to reference it for your own project!

usually, I like to call it OnCreate or something along those lines; however, for the simplicity of using adamhlt's repo as a reference, I kept it Render for now...

turns out our render function will have to do a few main things:

  • Get the current window of our game GetWindowThreadProcessId(hWindow, &processId);
  • Create and register a window class for our overlay
  • Show and update the registered window
  • Initialize ImGui
  • Have a main update loop that calls new ImGui frames and checks for window resize etc.
  • Cleanup once we have exited the update loop

creating a window class is actually really simple just like a simple fill-in-the-blank! registering it seems long but doesn’t have much going for it either

basically reminds me of Vulkan at this point hehe


	//our window class
  WNDCLASSEX wc;

  wc.cbClsExtra = NULL;
  wc.cbSize = sizeof(WNDCLASSEX);
  wc.cbWndExtra = NULL;
  wc.hbrBackground = (HBRUSH)CreateSolidBrush(RGB(0, 0, 0));
  wc.hCursor = LoadCursor(nullptr, IDC_ARROW);
  wc.hIcon = LoadIcon(nullptr, IDI_APPLICATION);
  wc.hIconSm = LoadIcon(nullptr, IDI_APPLICATION);
  wc.hInstance = GetModuleHandle(nullptr);
  wc.lpfnWndProc = WindowProcess; //make sure you pass this too ImGui_ImplWin32_WndProcHandler
  wc.lpszClassName = _T("My Overylay");
  wc.lpszMenuName = nullptr;
  wc.style = CS_VREDRAW | CS_HREDRAW;

	//Register time
	::RegisterClassEx(&wc);
  const HWND hwnd = ::CreateWindowExW(WS_EX_TOPMOST | WS_EX_TRANSPARENT | WS_EX_NOACTIVATE, wc.lpszClassName, _T("My Overylay"), WS_POPUP, 0, 0, GetSystemMetrics(SM_CXSCREEN), GetSystemMetrics(SM_CYSCREEN), nullptr, nullptr, wc.hInstance, nullptr);

  SetLayeredWindowAttributes(hwnd, 0, 255, LWA_ALPHA);
  const MARGINS margin = {-1, 0, 0, 0};
  DwmExtendFrameIntoClientArea(hwnd, &margin);

initializing ImGui is really simple, as much as I would love to show it, this post is getting a bit long, but refer to:

https://github.com/adamhlt/D3D11-Overlay-ImGui/ https://github.com/ocornut/imgui

creating a running update loop is really simple too, apparently!


	bool isRunning = true;

	while (isRunning)
	{
	  MSG msg = { 0 };

	  // process windows messages
	  while (PeekMessage(&msg, nullptr, 0U, 0U, PM_REMOVE))
	  {
	    TranslateMessage(&msg);
	    DispatchMessage(&msg);

	    if (msg.message == WM_QUIT)
	      isRunning = false;
	  }

	  // handle exit conditions
	  if (GetAsyncKeyState(VK_END) & 1)
	    isRunning = false;

	  if (bTargetSet && !IsWindowAlive())
	    isRunning = false;

	  if (!isRunning)
	    break;

	  // keep overlay window aligned with target
	  #ifdef _WINDLL
	    if (hTargetWindow)
	      MoveWindow(hwnd);
	    else
	      continue;
	  #else
	    if (hTargetWindow && bTargetSet)
	      MoveWindow(hwnd);
	  #endif

	  // clear overlay if target is not in focus
	  if (bTargetSet && !IsWindowFocus(hwnd))
	  {
	    const float clearColor[4] = {
	      clear_color.x * clear_color.w,
	      clear_color.y * clear_color.w,
	      clear_color.z * clear_color.w,
	      clear_color.w
	    };

	    DeviceContext->OMSetRenderTargets(1, &pMainRenderTargetView, nullptr);
	    DeviceContext->ClearRenderTargetView(pMainRenderTargetView, clearColor);
	    pSwapChain->Present(1, 0);
	    continue;
	  }

	  // start a new ImGui frame
	  ImGui_ImplDX11_NewFrame();
	  ImGui_ImplWin32_NewFrame();
	  ImGui::NewFrame();

	  {
	    Draw(); // <---- our imgui draw calls
	  }

	  ImGui::EndFrame();

	  // Adjust input transparency depending on menu state
	  LONG exStyle = WS_EX_TOPMOST | WS_EX_LAYERED | WS_EX_TOOLWINDOW;
	  if (Drawing::isActive())
	    SetWindowLong(hwnd, GWL_EXSTYLE, exStyle);
	  else
	    SetWindowLong(hwnd, GWL_EXSTYLE, exStyle | WS_EX_TRANSPARENT);

	  // render ImGui frame
	  ImGui::Render();

	  const float clearColor[4] = {
	    clear_color.x * clear_color.w,
	    clear_color.y * clear_color.w,
	    clear_color.z * clear_color.w,
	    clear_color.w
	  };

	  DeviceContext->OMSetRenderTargets(1, &pMainRenderTargetView, nullptr);
	  DeviceContext->ClearRenderTargetView(pMainRenderTargetView, clearColor);
	  ImGui_ImplDX11_RenderDrawData(ImGui::GetDrawData());

	  pSwapChain->Present(1, 0);
	}

	//Clean up...

  ImGui_ImplDX11_Shutdown();
  ImGui_ImplWin32_Shutdown();
  ImGui::DestroyContext();

  CleanupDevice(); // a function that sets the SwapChain, DeviceContext and Device too null
  ::DestroyWindow(hwnd);
  ::UnregisterClass(wc.lpszClassName, wc.hInstance);

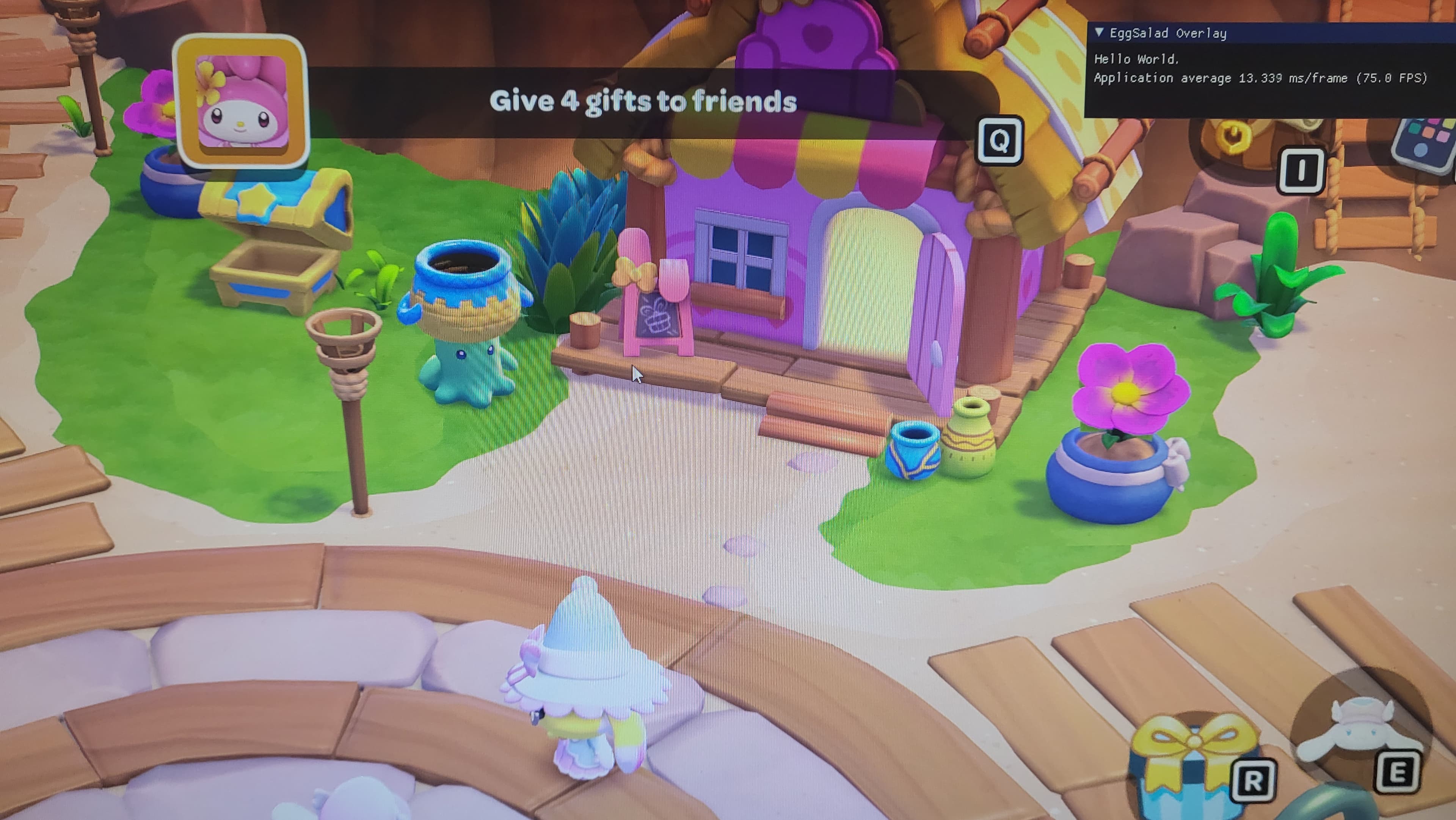

and that's basically it! I compiled my DLL and, with my fingers crossed, I injected it into our game using Process Hacker and boom! My first mission was complete!


Stay tuned for more tomfoolery hehehe!
